Hand Pumps
PDF Downloads
HP CATALOG HP INSTALLATION
CAD Downloads
HP 3D Horizontal HP 3D

General Information

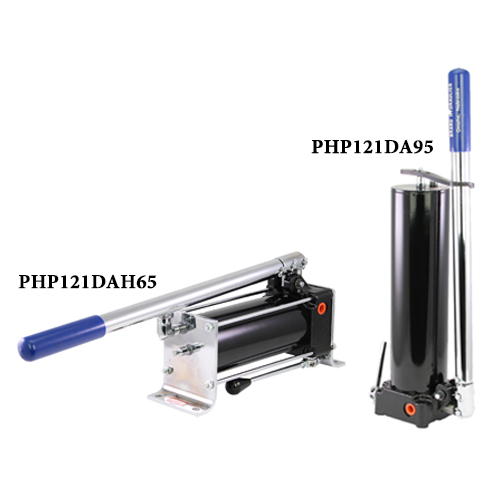

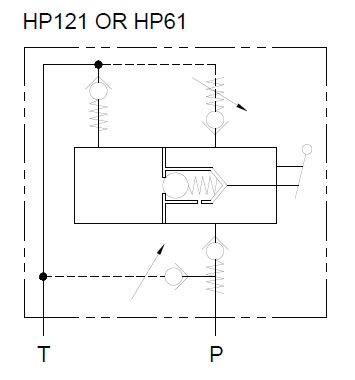

The Brand, hand operated hydraulic pump comes in three basic models HP121DA, HP61DA and HP22SA. Each one of these models comes with a relief that can be adjusted manually to suit the customerís requirements. Brand has also redesigned the outlet check seat for zero leakage. The zero leak seat was created by utilizing an oíring seal to replace the steel ball seal. The NT (no tank) option does not have a tank, pressure relief and release valve. To use the NT option the customer must connect the inlet of the hand pump to an external reservoir (external reservoir is not supplied by Brand). The TL (2 in. tank) option has a small tank, pressure relief and release valve. To use the TL option the customer must connect the fill port on the tank to an external reservoir (external reservoir is not supplied by Brand). When mounting the NT or TL option, the pump should be placed below the fluid level of the external reservoir.
