MS
PDF Downloads
MS CATALOG MS INSTALLATION

CAD Downloads
MS16 3D MS75 3D

General Information

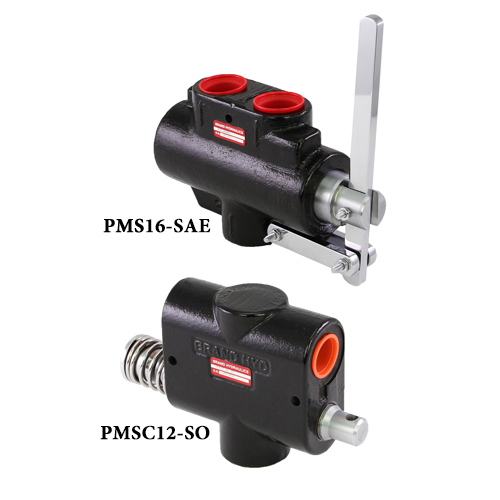

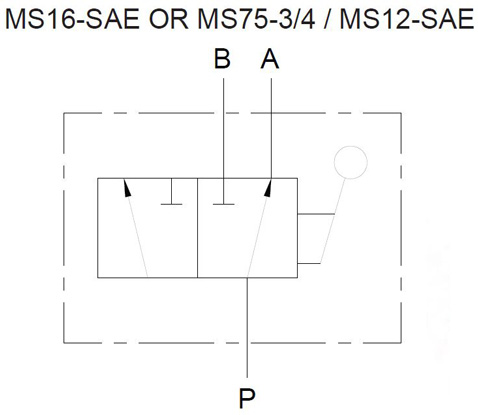

The Brand, MS two-position manual selector valves are available in two different sizes MS75 /MS12 and MS16-SAE. The MS16-SAE allows up to 45 gpm (170 lpm) out of either port and has a manual handle for effortless shifting of the spool. The MS75/ MS12 allows up to 30 gpm (113 lpm) out of either port and has a T grip handle for effortless push/pull shifting of the spool. The inlet is orificed to ports A and B when the spool is being shifted from port A to port B or vise versa.
